คำอธิบาย

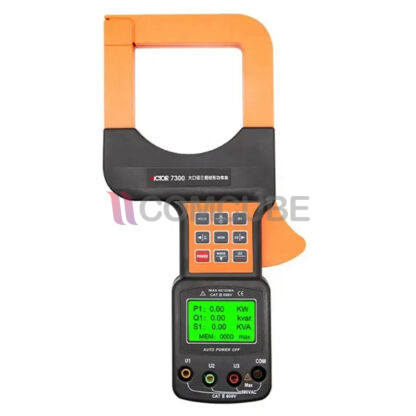

คุณสมบัติของ VICTOR 7300 Power Clamp Tester
ค่าที่สามารถวัดได้ three phase AC voltage, leakage current, current, active power, reactive power, apparent power, power, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence
จอแสดงผล LCD: 43mm×29mm
Clamp size 80mm×80mm
Data storage 200 groups
Interface USB
Frequency 50Hz ,60Hz(auto)
Operation way Automatic range
Sample rate 2 times/s
Line voltage < AC 600V
Backlight
Data hold
Over range indication “OL” Displays
Auto off 15 minutes idle
Low battery indication
Working current 50mA with backlight, 25mA without backlight
Working condition -10℃-40℃,<80%rh
Storage condition -10℃-60℃,<70%rh
Safety IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)
แบรนด์สินค้า VICTOR รุ่น 7300
ข้อมูลทางเทคนิค
ช่วงการวัด:
Current AC 0.00mA-1200A, Resolution: 0.01mA
Power AC 0.5W-720KW, Resolution: 0.01W
Voltage AC 0-600V, Resolution: 0.01V
Frequency 25Hz-100Hz, Resolution: 0.1Hz
Phase angle 0.0°-360.0°, Resolution: 0.1°
Power factor 0.3-1.0(Capacitive or inductive), Resolution: 0.001
Active power 0.10KW~ 1200KW
Apparent power 0.10KVA~1200KVA
Reactive power 0.10Kvar~1200Kvar
Power energy 0.0000KWh-72000KWh
Power supply 1.5VAAA×4
Product size 275mm ×145mm × 40mm
Product weight 1kg
Standard accessories Test Wiresx4pcs (Yellow, Green, Red, Black), USB Cable x1pc, Software CD x1pcs, Battery x4pcs, Tool casex1pc
ไฟล์ข้อมูลสินค้าDATA SHEET
