คำอธิบาย

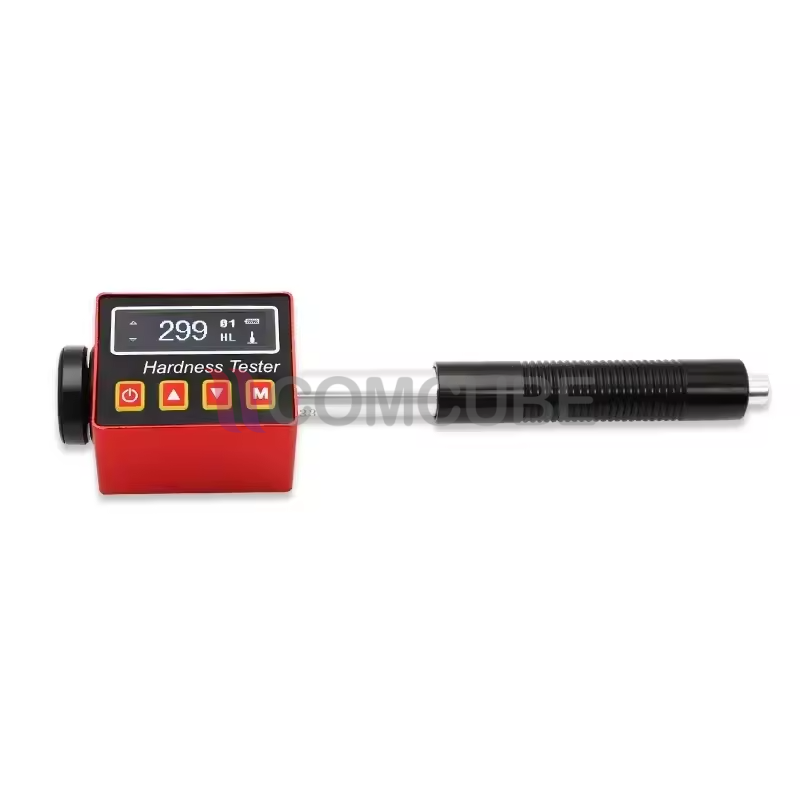

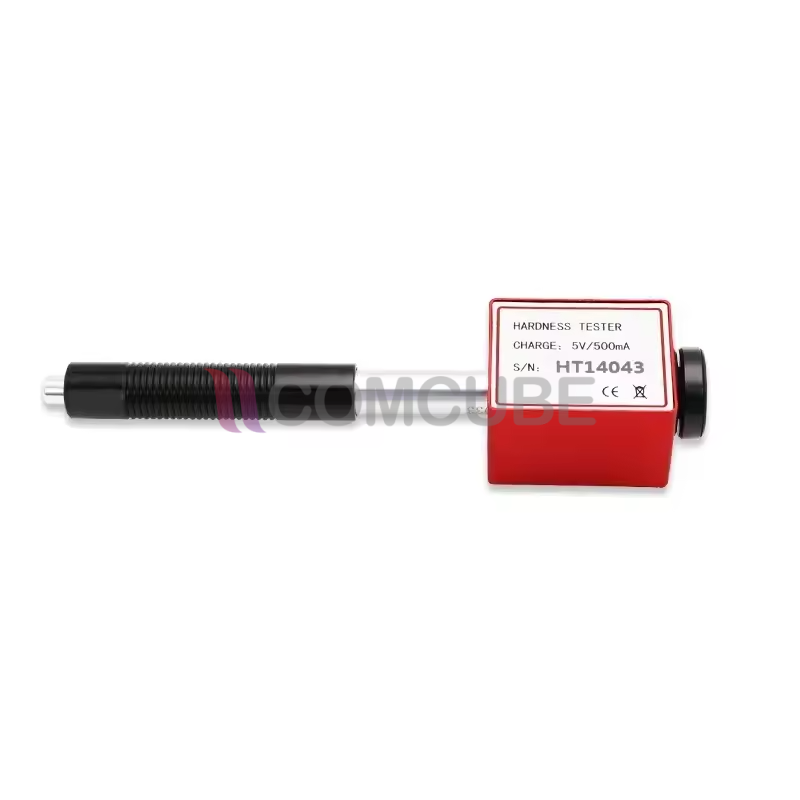

ข้อมูลทางเทคนิคของ Leeb Hardness Tester SHAHE AH-110
ทิศทางการวัด: support 360º
ช่วงการวัด:(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness standard:HL, HB, HRB ,HRC ,HRA, HV, HS
ความแม่นยำ Accuracy:±0.5%(HLD=800)
Indication Repeatability:0.8%(HLD=800)
จอแสดงผล: Industrial grade 128×64 OLED Display
ขนาดเครื่อง:148mm×40mm×30mm
แหล่งพลังงาน: rechargeable lithium battery
Continuous working time: about 10 hours
Operating conditions: operating temperature -10-50℃; Storage temperature: -30℃-60℃; Relative humidity ≤ 90%;
คุณสมบัติ
1.Intelligent simple
“fool” type operation, directly shows Leeb scale and Rockwell values
2. Small and portable
Small, portable instrument, integrated design without connecting cables, improves the reliability
3.Industry highlights, OLED display
Can clear display data under direct sunlight, suitable for all kinds of lighting conditions
4.Accurate Measurement
High precision of measurement circuit guarantee value error for ±0.5%(HLD=800),repetition rate value for 0.8%
5.Support for multiple hardness standard
HL,HV,HRA,HRC,HRB,HB,HS
6.Massive capacity data storage
The unprecedented mass storage leads the technology trend. It can save 270hardness measurement data, each group including average, hardness standard.
7.Support ‘Forged Steel’ material
When impact type D device test sample “forged steel” it can be read directly HB values, without manual look-up table. Hardness value is preset upper and lower limit, automatic alarm beyond the scope, convenient for the user batch testing.
8.Charge as you want
USB charging, compatible with lots cell phones and other digital product interface
แบรนด์สินค้า SHAHE รุ่น AH-110
