คุณสมบัติของ EXTECH DV690
Detect and monitor electrical fields up to 69 kV
Helps comply with NFPA 70E, OSHA 1910 Subpart S, and OSHA 1926 Subpart K
Receive clear warning of high voltage from the 106 dB buzzer and bright red LED alarm
Silence the loud audible buzzer with mute switch when preferred
The self-test function ensures reliable and safe operation

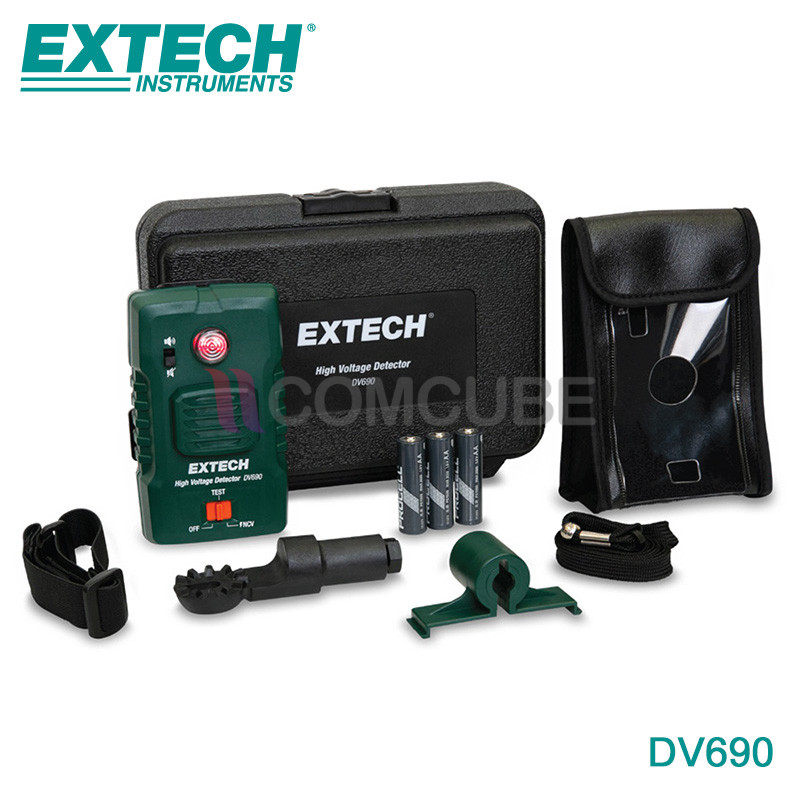

Mount the detector five different ways for hands-free or hands-on use: lanyard, clip, handheld, arm strap, or mount onto hot stick (not included)
Universal adapter allows use with hot sticks to extend reach while remaining at a safe distance (hot stick not included)
Designed with a textured hand grip for easy operation while wearing gloves
แบรนด์สินค้า EXTECH รุ่น DV690
ข้อมูลทางเทคนิค
AC Voltage Range 100 V AC to 69 kV AC
AC Frequency Range 50/60 Hz
Audible Indication >106 dB at 0 cm
Visual Indication 507 lux red LED
Power Source 1.5 V (AA) x 3, ~120 hrs continuous use (typical)
EMC EN 61326-1
IP Rating IP54
Drop Test 4 ft (1.2 m)
Weight 0.49 lb (220 g)
Dimensions 5.24 × 3.03 × 2.05 in (133 × 77 × 52 mm)
ไฟล์ข้อมูลสินค้าDATA SHEETUSER MANUAL
