คำอธิบาย

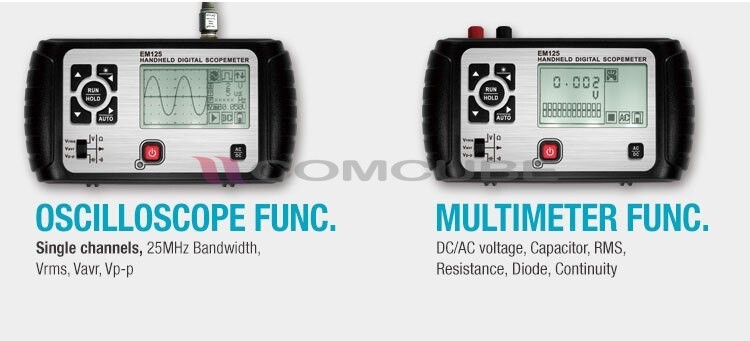

คุณสมบัติของออสซิลโลสโคป All-sun EM125
It uses a high speed AD sampler to convert the input analog signal into digital signal and displays the signal on a 128 x 64 LCD after processing the signal through a high-speed CPU.
It uses a high speed comparator to get a good edge trigger for a steady display, which is good for observation.
Its mustimeter part uses a dedicated, 6000-count chip, which can provide a higher precision.
Power supplied by 1 piece 3.7V Lithium battery.(Battery included in the equipment
แบรนด์สินค้า All-sun รุ่น EM125
ข้อมูลทางเทคนิค
Specification of EM125 Oscilloscope :
Bandwidth(-3dB) :25MHz
Sample : Max sample : 100MSa/S
Channel : 1
Couple : AC, DC
Rising time : < 17.5 nS
Input independence : 1MO,=20pF
Max input voltage : 1x CAT III 300 VAC 10x, 100x CAT III 600 VAC
Vertical resolution : 8bit
Vertical sensitive : 50mV/div-20V/div
Horizontal resolution : 10nS/div
Horizontal sensitive : 10nS/div -5S/div
Depth-sampling : 0.1K/Channel
Trigger mode : AUTO, Rising edge, falling edge
Screen size : 68mm(horizontal) x 38mm(vertical); backlight : LED
Battery : 3.7V Lithium battery 1200mAH
Charger : Input : 100VAC-240VAC
Output : 5V±10%DC 1000mA

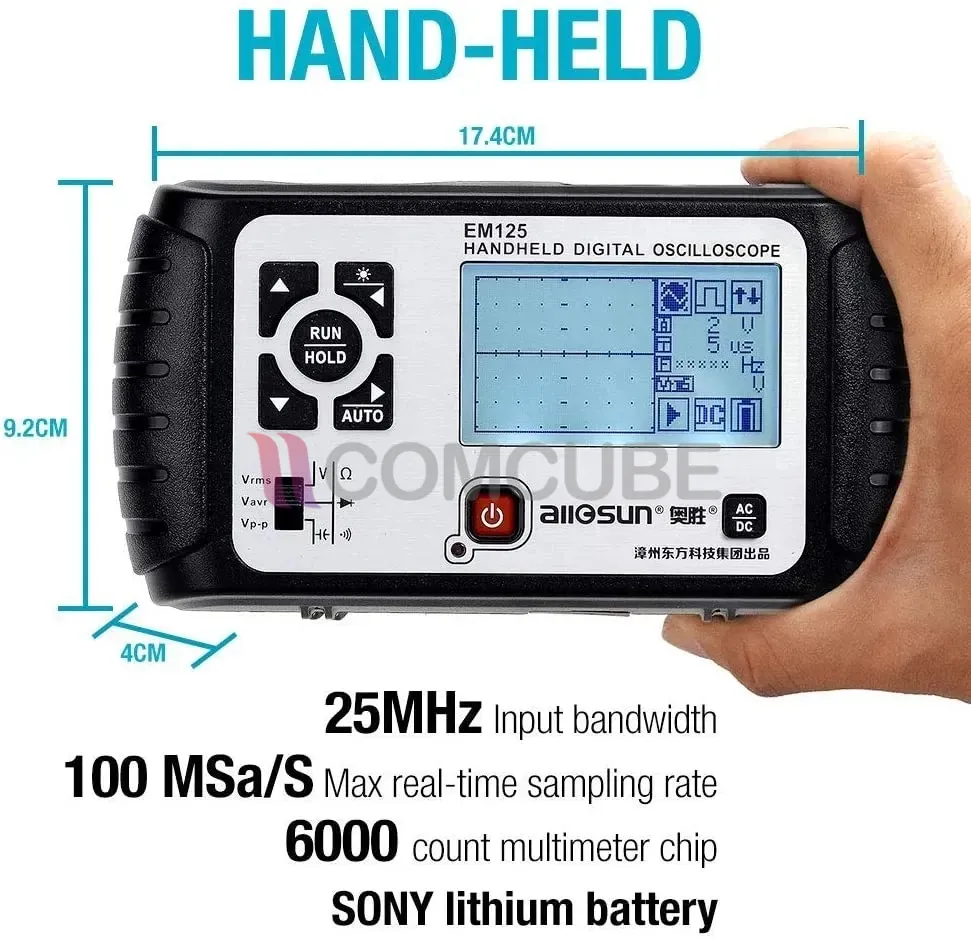

Size : 174 x 92 x 40mm
Specification ofMultimeter:
Measure count : 6000
Input : Max input voltage : 600 Vrms CAT II, 300 Vrms CAT III
On resistance : 25O(at the range of 600O), if less it beep
Diode measure : >2V shows OL(overload)<0.25 beep
Capacitymeasure : 6.000nF- 6mF 7range
Resistancemeasure : 600.0O- 60.00MO 6range
Voltagemeasure : 6V- 600V 3 rang
