คำอธิบาย

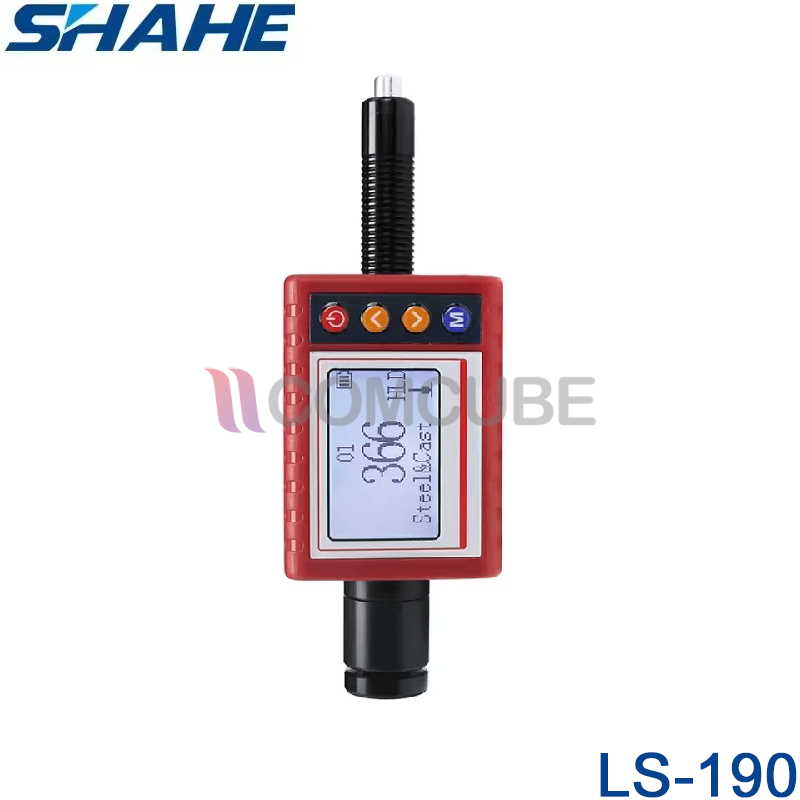

ข้อมูลทางเทคนิคของ Leeb Hardness Tester SHAHE LS-190
ทิศทางการวัด: support 360º(vertical down, oblique down, horizontal, oblique up, vertical up)
ช่วงการวัด:(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness standard:HL,HB,HRB,HRC,HRA,HV,HS
ความแม่นยำ Accuracy:±0.5%(HLD=800)
Indication Repeatability:0.8%(HLD=800)
จอแสดงผล: Industrial grade 128×64 graphic dot matrix OLED liquid crystal
ขนาดเครื่อง:148mm×30mm×30mm
แหล่งพลังงาน: rechargeable lithium battery
Continuous working time: about 10 hours
Operating conditions: operating temperature -10-50℃; Storage temperature: -30℃-60℃; Relative humidity ≤ 90%;
คุณสมบัติ
Small and portable,The instrument is compact, portable and integrated without connecting cables, which have high reliability
Industrial bright OLED display ,It can also be displayed under direct sunlight clearly, suitable for various light conditions
The accurate and high-precision measuring circuit ensures that the value error is ±0.5%(HLD=800) and the value repeatability is 0.8%
Support a variety of hardness HLD,HRC,HRB,HRA,HB1,HB2,HV,HSD
Automatic calculation,The average hardness can be calculated automatically
Hardness ,Support “forged Steel” material1When the D-type impact device is used to test the “forged steel” sample, the HB value can be read directly without manual table reference.
Convenient charging,USB charging, compatible with most mobile phones and other digital product interface
แบรนด์สินค้า SHAHE รุ่น LS-190
