แท็บเล็ตออสซิลโลสโคป 4CH OWON TAO3000 Series Tablet Oscilloscope

คำอธิบาย

Sample Rate: 1GS/s
Record length: 40M
Waveform Refresh Rate: 45,000 wfms/s
Horizontal Scale (s/div)): 1ns/div – 1000s/div, step by 1 – 2 – 5
Channel: 4
Display: 8″ color LCD, 800 x 600 pixels display，multi-touch screen
Input Impedance: 1MΩ ± 2%, in parallel with 15pF ± 5pF
Max Input Voltage: 1MΩ ≤ 300Vrms;
Probe Attenuation Factor: 0.001X – 1000X, step by 1 – 2 – 5
Input Coupling: DC, AC, GND
Vertical Sensitivity: 1mV/div – 10V/div (at input)
Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding(optional): I2C, SPI, UART(RS232), CAN
Trigger Mode: Auto, Normal, and Single
Automatic Measurement: Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math: ＋, －, ×, ÷, FFT，FFTrms,Intg,Diff,Sqrt, User Defined Function, Digital Filter
Waveform Storage: 100 waveforms

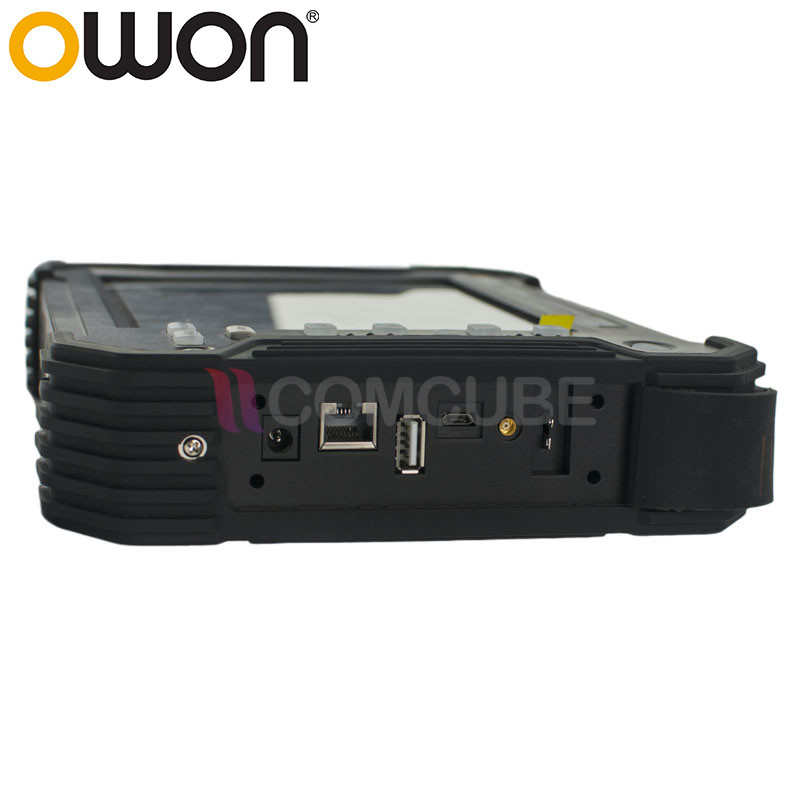

Communication Interface: USB host, USB device, USB port for PictBridge,LAN, and WIFI (optional)
Frequency Counter: available
Battery: 7.4V, 8000mAh， 5 hours operation
ขนาดเครื่อง n(WxHxD) 270x191x48（mm）
น้ำหนัก About 1.7kg
